​Lasso Server 9.3 Installation for Windows Server 2012

Supported Platforms

This article discusses Lasso Server 9.3 installation for the AMD64 CPU version of Windows Server 2012.

Note that this release is still in Beta and should not be used on production machines until on a full supported release.

Downloading: 3 required files

[Before you start: make sure is permitted in your servers default browser1.]

1. Lasso Server The Lasso Server 9.3 for Windows Server 2012 installer download can be found from the download-archive page

On that page, navigate to "Lasso Server", then to "BETA" (this will be moved into the main WIN directory on official release), then select to download the Lasso 9.3 executable installer corresponding to your needs.  Choose one of:

2. Web Services: Either
Apache 2.2: Lasso-Server-with-Instance-Manager-Apache2.2-9.3.0.exe
Microsoft Internet Information Services: Lasso-Server-with-Instance-Manager-IIS-9.3.0.ex (not ready yet)

3. ImageMagick
Lasso 9.3 requires ImageMagick 6.7.7-7-Q16. As of January 14th, 2015, this file can be found here:

Microsoft IIS Part 1: Install and Setup

To install IIS, follow these steps.  If it's already installed, please review the "Role Services" step below to ensure that "ISAPI Extensions" and "ISAPI Filters" are installed.

Open the "Server Manager", as shown below.

  • Click "Local Server", as shown below

Windows Server 2012 Server Manager screen seen on install of Lasso Server 9.3

  • Scroll down to the "ROLES AND FEATURES" section.  Click the "TASKS" drop-down menu to its right (as shown, below) and click the "Add Roles and Features" item.

Windows Server 2012 Roles and Features settings on install for Lasso 9.3

  • Choose "Role-based or feature-based installation" and click the "Next >" button.
  • Choose "Select a server from the server pool", choose the server from the "Server Pool" section, then click the "Next >" button.
  • In the list of "Roles", place a check-mark in the check-mark box for "Web Server (IIS)".  A window will open.  Click its "Add Features" button, which will close it.  Click the "Next >" button.
  • In the "Features" list, you needn't make any changes.  Click the "Next >" button.
  • On the "Web Server Role (IIS)" page of the wizard, click the "Next >" button.
  • On the "Role Services" page of the wizard, in the "Role services" section, scroll down until you find "Application Development".  Expand that item.  Place check-marks in the check-mark boxes for "ISAPI Extensions" and "ISAPI Filters".  Click the "Next >" button.
  • On the "Confirmation" page of the wizard, click the "Install" button.
  • When IIS is installed with its "ISAPI Extensions" and "ISAPI Filters" and you have at least one web-site configured, you can proceed to install Lasso 9.3.  Refer to the "Lasso Server 9.3 Install and Setup" section, below, then proceed with IIS Part 2: Configuration

Apache Part 1: Install and Setup

If you are using Apache instead of IIS, follow these instructions.

These instructions are not yet available.  Please see the instructions for Lasso 9.2:

ImageMagick Install

Lasso 9.3 with LUX requires ImageMagick 6.7.7-7-Q16.  You will need to install this from the file you downloaded earlier.  Be sure to "Add application directory to your system path" during its installation.

Lasso Server 9.3 Install and Setup

Installing Lasso 9.3 for Windows Server 2012 is very simple.  Double-click the installer file you'd downloaded earlier, read and be sure to accept the agreement, then perform a "Typical" installation.  During installation, certain dependencies might need to be installed, such as the "Microsoft Visual C++ 2012 Redistributable (x64)" software.

After installation, navigate to the LUX (LassoUser-eXperience) Admin panel by using the following path:


NOTE: update "localhost" with the correct IP or hostname if needed

Microsoft IIS Part 2: Configuration

Instructions from here on are for IIS configuration after Lasso 9.3 and ImageMagick are installed

  • Once Lasso 9.3 has been installed, here are the steps to follow in order to instruct IIS to send requests for Lasso source-code files to the Lasso connector for IIS.
  • In the "Server Manager", click the Tools menu at the top, then choose the "Internet Information Services (IIS) Manager".
  • Select your web-site on the left, then double-click the "Handler Mappings" item in the central part of the window, as shown below.

Windows Server 2012 Handler Mappings for install of Lasso 9.3

  • In the "Actions" section on the right, click "Add Script Map..."
  • For the "Request path", type: *.lasso
  • For the "Executable", type: C:\Windows\system32\isapi_lasso9.dll
  • For the "Name", type: Lasso9Handler
  • Click the "OK" button.  A window will ask you if you wish to allow the ISAPI extension.  Click its "Yes" button.

Apache 2.2 Part 2: Configuration

Instructions are not yet available. Please see the instructions for Lasso 9.2 as a guide, noting that the section for the 'Instance Manager' is no longer relevant.

Last Step: Read the Release Notes

Read through the Release Notes page that contains a screen by screen walkthrough of the new LUX admin interface. This is found here:

Before installing

Important: Previous versions of Lasso Server 9.x must not be installed on your Windows Server 2012 before installing Lasso Server 9.3.

1In a default installation of Microsoft Windows Server 2012, Microsoft Internet Explorer is set to block most web-sites.

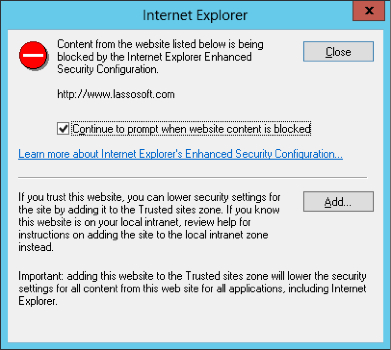

In order to visit the Lassosoft web-site, you'll need to add an exception.  Visit LassoSoft's download-archive page from your Servers Browser at Installing Lasso on Windows Server 2012 you might see this

Then click the "Add" button to add the web-site to the list of allowed web-sites.

Then click the "Close" button.
